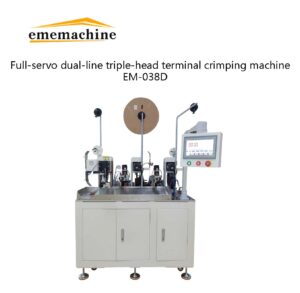

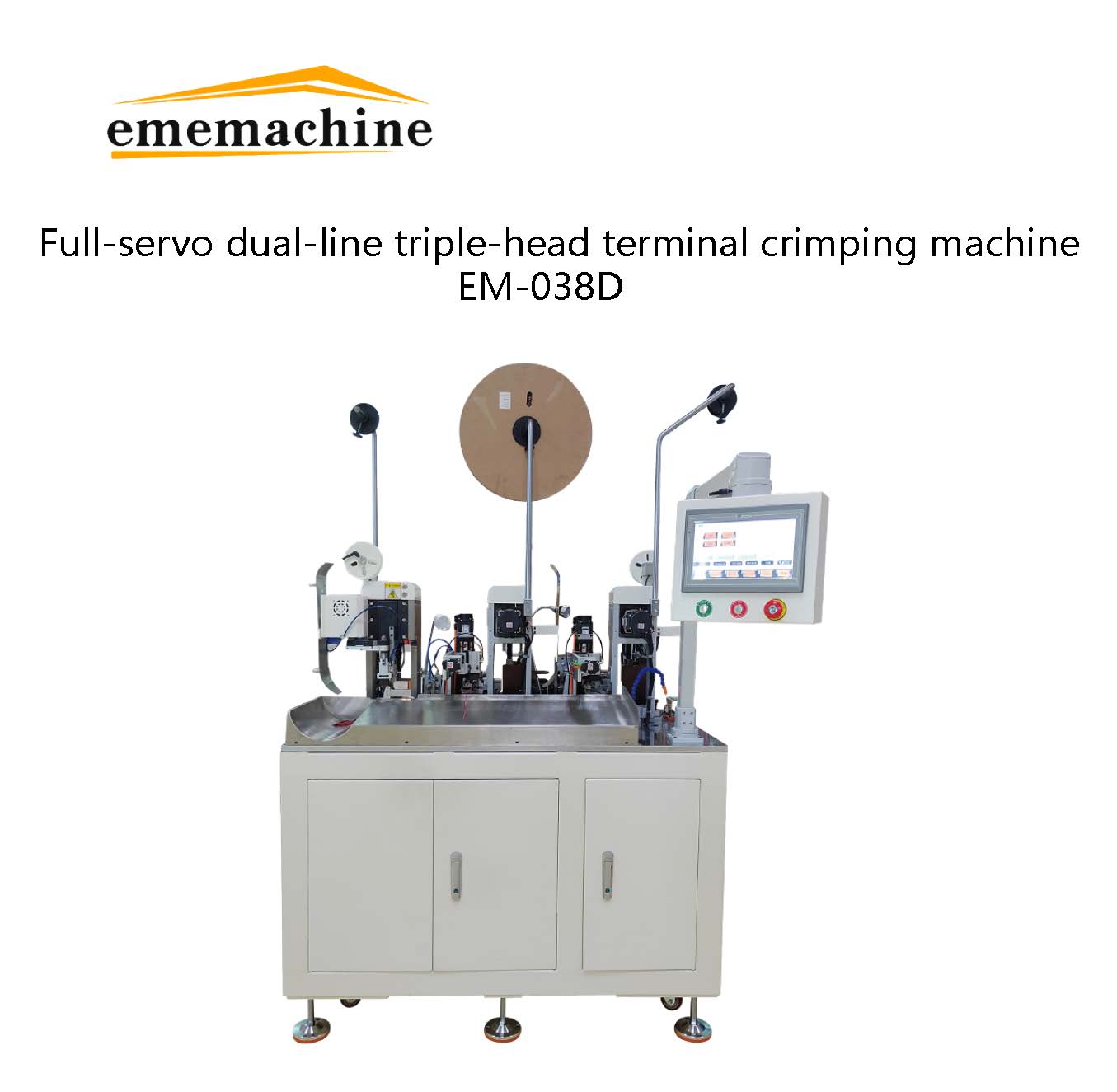

EM-038D Fully Servo Dual-Line, Triple-Head Terminal Crimping Machine

Capacity: 2500 pieces/hour (length within 300 mm)

Function: Complete one end of two wires and crimp (co-press) on the same terminal Processing Range: AWG24#–AWG10# Cutting Length: 65–3000 mm (conveyor recommended for lengths over 800 mm)

Electric Power Source: AC 220V 50/60Hz 20A

Cutting Accuracy: Adjustment range within 0.5 mm + 0.5% of cutting length

Crimping Capacity: Standard 2 TON (cast super silent clutch 2.0T terminal machine)

Machine Size: L1380 × W100 × H1860 (mm)
