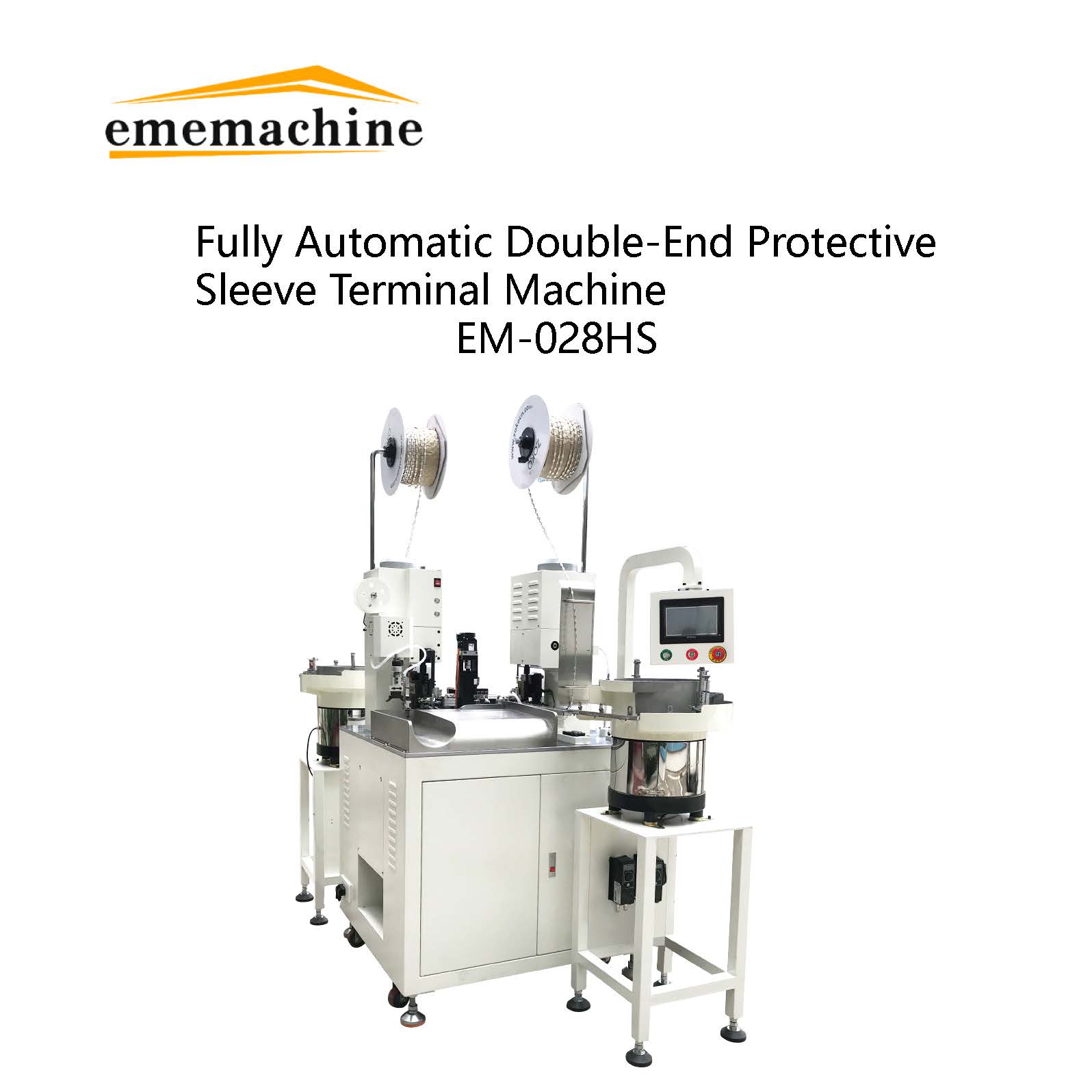

EM-028HS Fully Automatic Double-end Sheath Terminal Machine

Capacity: 1680 pieces/hour (for lengths up to 300 mm)

Function: Fully automatic wire cutting, stripping, terminal crimping, and dual-end sheath pulling to position Processing range: AWG 26#–AWG 12#

Cutting length: 80–3000 mm

Power supply: AC 220 V, 50/60 Hz, 20 A

Cutting precision: for lengths under 500 mm, ±0.5 mm + 0.2% of set length; For lengths over 1000 mm, ±1 mm + 0.2% of set length

Crimping capacity: standard 2 TON (cast super silent clutch 2.0 T terminal machine)

Machine dimensions: L965 × W835 × H1860 mm
