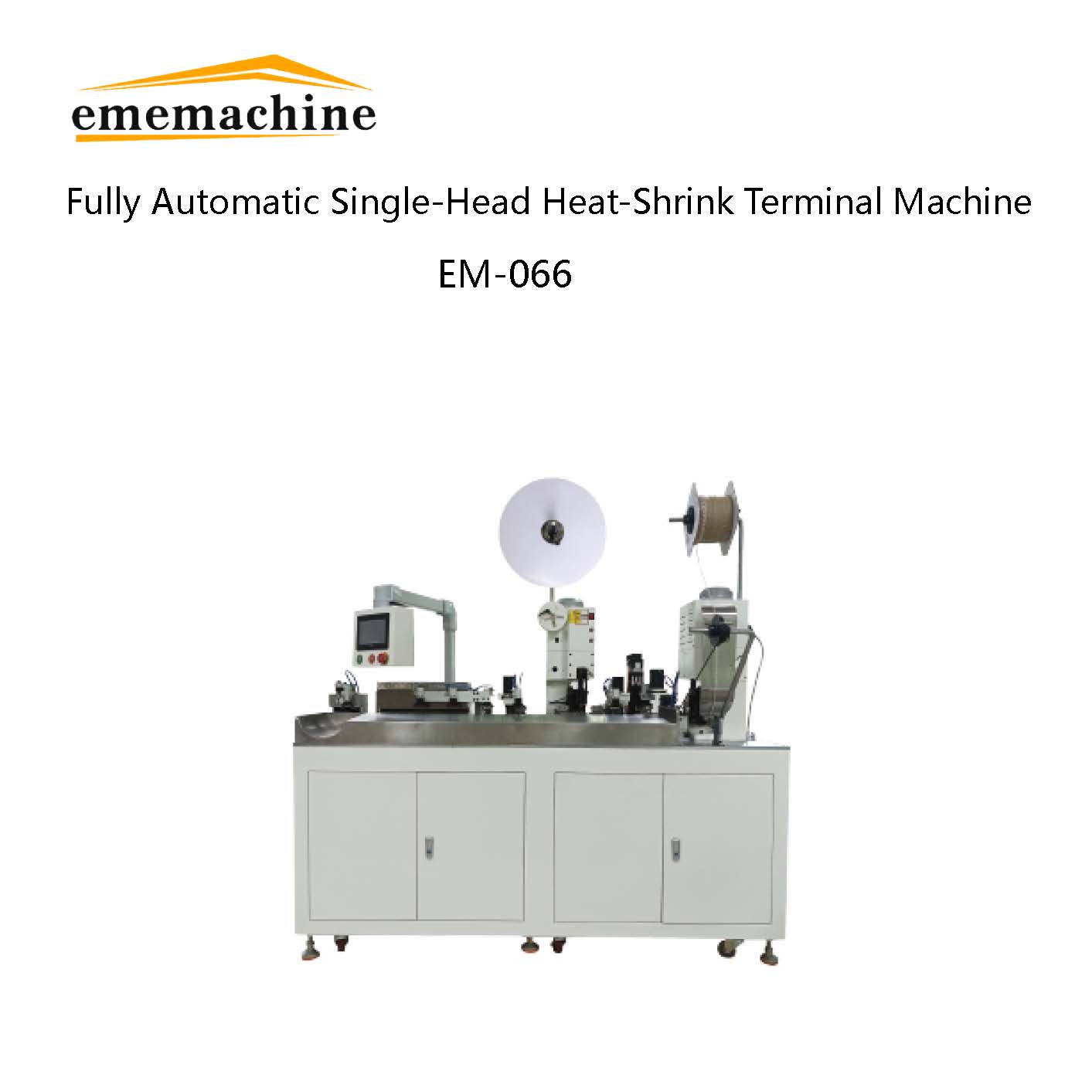

Fully Automatic Single-Head Heat-Shrink Terminal Machine

Capacity Capacity: 1800 pieces/hour (for lengths up to 300 mm)

Function: wire cutting, stripping, double-end crimping, single-end crimping, single-end heat shrink tubing insertion and positioning with baking completion

Processing range: 0.3–2.5 mm²

Cutting length: 90–3000 mm

Power supply: AC 220V 50/60Hz 20A

Cutting accuracy: for lengths less than 500 mm, 0.5 mm + set length × 0.2%; for lengths greater than 1000 mm, 1 mm + set length × 0.2% Crimping capacity: standard 2 TON (cast super silent clutch 2.0T terminal machine) Machine dimensions: L1800 × W800 × H1860 mm
