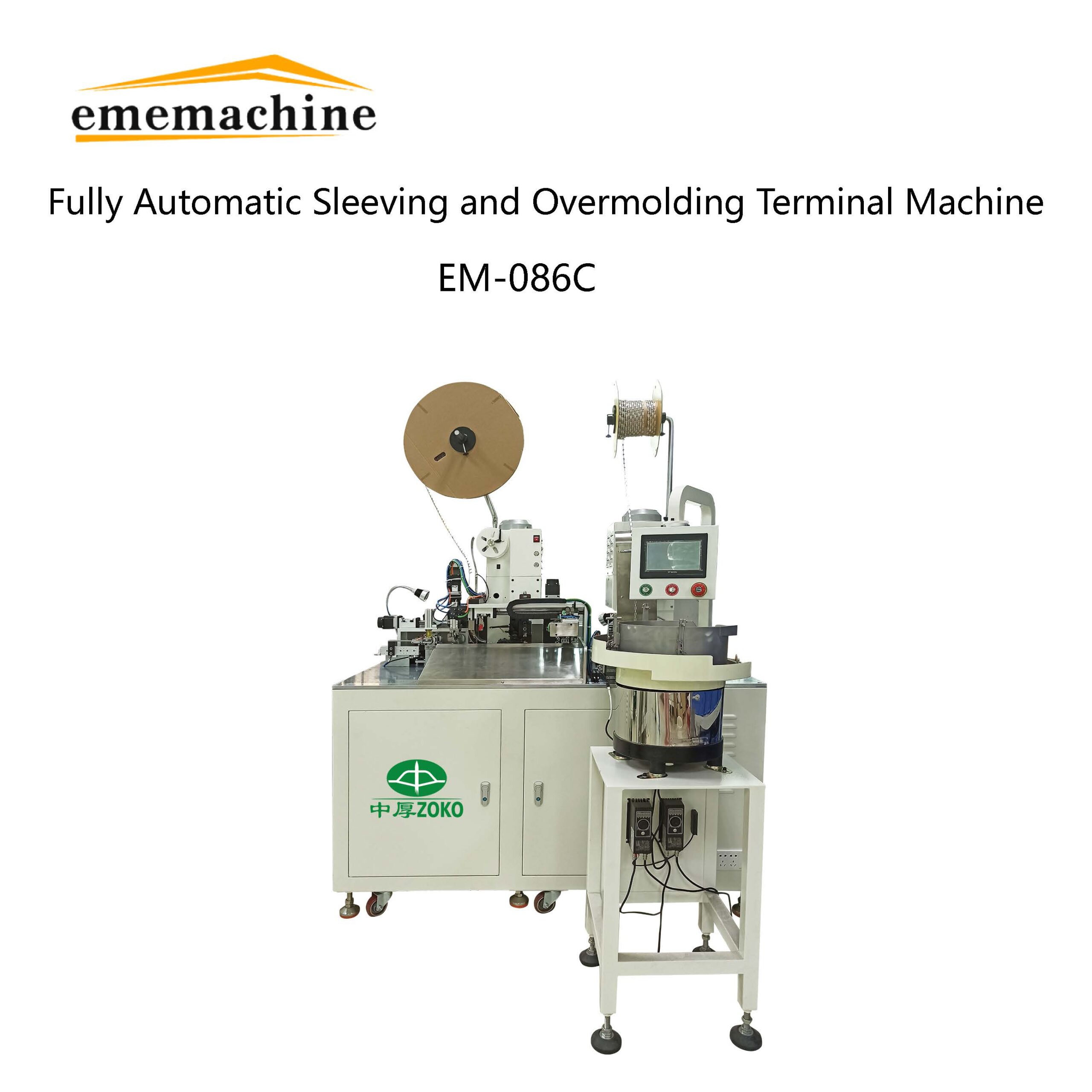

EM-086C Fully Automatic Sleeving and Overmolding Terminal Machine

Capacity: 1300 pieces per hour (for lengths within 300 mm)

Function: Automatic cutting, stripping, terminal crimping, sleeving, and insertion into connector housings for wires of different colors

Processing range: 0.3–2.5 mm², AWG24#–AWG12#

Cutting length: 75–3000 mm Power supply: AC 220 V, 50/60 Hz, 20 A

Cutting precision: For lengths less than 500 mm, 0.5 mm + (set length × 0.2%) For lengths greater than 1000 mm, 1 mm + (set length × 0.2%)

Crimping capacity: Standard 2 TON (cast super-silent clutch 2.0 TON terminal machine)

Mechanical dimensions: L1500 × W800 × H1860 mm

Air pressure: 0.5–0.7 MPa
